Traditional Galvanised Trench Box Grates

TRADITIONAL GALVANISED TRENCH BOX GRATES - Network Steel
TRADITIONAL GALVANISED TRENCH BOX GRATES - Network Steel
TRADITIONAL GALVANISED TRENCH BOX GRATES - Network Steel

Traditional Galvanised Trench Box Grates

Sold in standard lengths, our affordable traditional box grates are the perfect drop in solution that can be easily cut and joined on site to meet your requirements. Our box grates are bolted down to the box ensuring there is no movement as they are driven over. Grates can be removed using an allen key for cleaning.
  • Reliable shipping across QLD
  • Proudly Australian designed and made to Australian standards
  • Hot Dip Galvanised Steel
  • Grate is Class B Load Rated
  • In stock, ready to ship
  • Backordered, shipping soon
Title
Regular price $165.00
/
Tax included. Shipping calculated at checkout.

Sold in standard lengths, our affordable traditional box grates are the perfect drop in solution that can be easily cut and joined on site to meet your requirements. Our box grates are bolted down to the box ensuring there is no movement as they are driven over. Grates can be removed using an allen key for cleaning.

Available in the following profiles:

  • 125mm wide x 80mm deep - Sold in 1, 2 and 3 metre lengths (available on request)
  • 150mm wide x 125mm deep - Sold in 1, 2 and 3 metre lengths
  • 200mm wide x 170mm deep - Sold in 2 and 3 metre lengths
  • 300mm wide x 170mm deep - Sold in 2 and 3 metre lengths (available on request)

Sold in standard lengths with end caps, joiners and outlets sold separately. There is no cut out in the base for the outlet position allowing you to cut out its location wherever you require it. Once you select the section profile you would like, the accessories to suit will appear.

Please note: grates are all in 1 metre pieces bolted down to the base and have Network Steel tagging on each grate.

Product Drawings
125mm wide x 80mm deep
150mm wide x 125mm deep
200mm wide x 170mm deep
300mm wide x 170mm deep
Accessories

This product is made from Hot Dip Galvanised Steel.

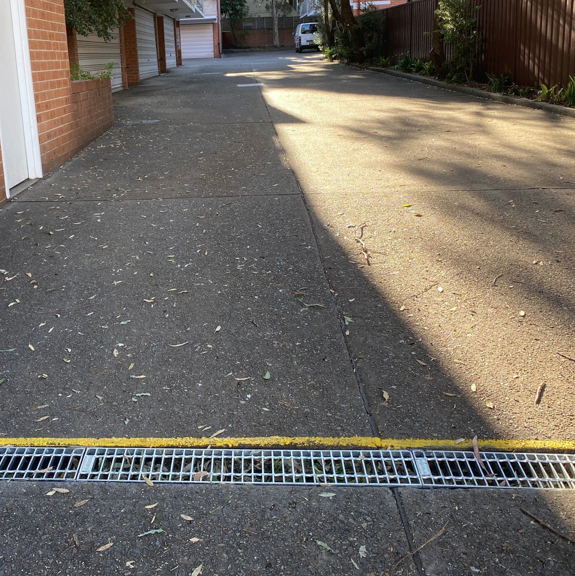

It is suitable for use in exterior applications. Some examples include driveways, walkways or garden areas.

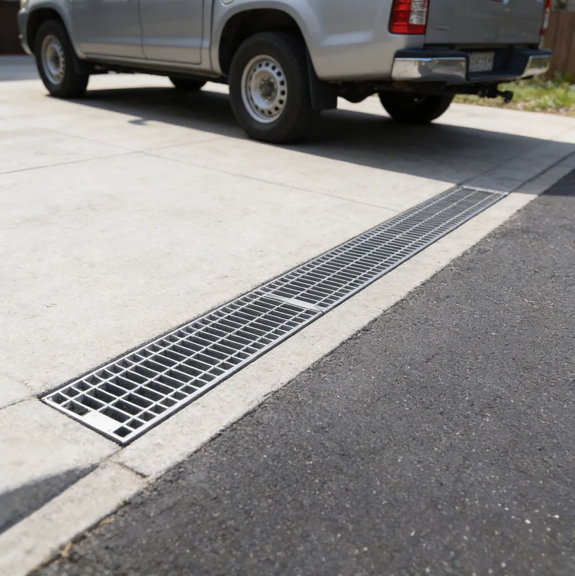

This product is Class B, suitable for cars and light trucks. It is typically used in pedestrian areas or in residential driveways.

Our inventory: 99% of our stock is consistently available. If an item is unavailable, it will either be marked as out of stock online or we will promptly notify you.

Shipping costs: To determine delivery costs, please input your suburb and postal code on the shopping cart page.

Our goal is to deliver orders placed before 12pm within Brisbane Metro the following business day via a Ute or Crane Truck.

Orders outside of Brisbane metro can expect delivery 1 to 2 days later. Currently, we only deliver this product to Brisbane, Sunshine Coast to Gympie Region, and Gold Coast down to selected areas in Northern NSW.

Input your postal code in the shopping cart to check if we deliver to your location.

We do provide free pick up if you prefer to collect the items yourself or arrange your own transportation.

Please be aware that truck deliveries with a crane can only lift materials off the truck and into the boundary of your front or back yard. We cannot guarantee a specific location or lift the material above the ground floor (first floor or higher) due to various factors.
